DIGITAL STILL CAMERA 　VDC-1200

＜ DIGITAL STILL CAMERA ＞VDC-1200

ID/Passport photo booth, Theme park, Photo studio, Medical application etc.

Supprting multi-purpose applications

High-definition images with 12million pixels CCD

5times optical zoom lens

SDK for Windows is available

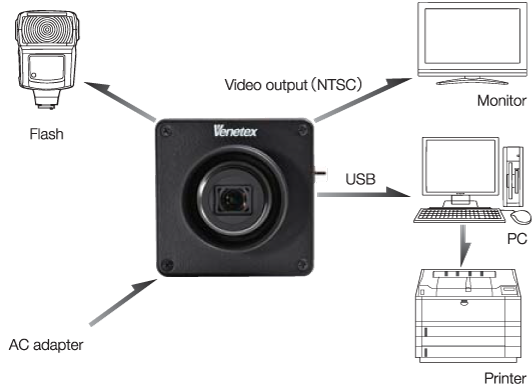

Multiple cameras can be controlled by a PC

img07_item02

Image pickup device	Element size		12Mega pixels
Optical	Focus length		F=6.3mm～31.5mm 35mm film format：35mm～175mm
	Shooting range		Normal：0.4m～∞、マクロ：0.05m～0.4m（WIDE）
	Iris		F3.1, F5.5
Resolution	Center		Horizontal/Vertical 1400TV line
Still Image	image size		12M 4000×3008 8M 3264×2448 5M 2560×1920 3M 2048×1536 2M 1600×1200 1M 1280×960
	Output format		RAW, JPEG（Exif Ver.2.2）
	ISO sensitivity		50~400(detail adjustment is possible)
	Shutter	Shutter speed	2~1/1000(combined mechanical shutter)
	white balance/td>	Mode	Auto/Manual/Custom
		color temperature tracking	3200K~8000K
moving picture	Analogue output	Format	NTSC
	Digital output	Format	JPEG
		Resolution	QuadVGA, XGA, VGA
		Frame rate	Maximum 17 fps
Functional specification	Exposure mode		Manual/Program/Aperture priority
	Exposure compensation		From -3.0EV to +3.5EV
	Photometry mode		Multi/Average/Spot
	Sharpness		6 steps
	Focus mode		Auto and manual (※)
	AF area		Center and spot
	Digital zoom		1 to 2.2 times
	Preview image size		640×480　and 320×320
Ppwer supply			DC 5V±5% with dedicated AC adapter
Power consumption			Under 3.0 Watt/td>
Externa terminal	Digital terminal		USB mini-B
	Video output		RCA
	Flash terminal		Flash terminal φ3.5mm
	DC input		AC adapter
Tripod support			3 position with M4 screw ×2 position
Operating environment	Operation temperature		0℃ to 40℃
	Operation humidity		30%RH to 80% RH (NO condensing)
Dimension			3 position with M4 screw ×2 position
Weight			Under 350g
OS			Windows 7 /Vista /XP
